Solar Thermal System Heat Pipe Solar Collector
heat pipe solar collector description
- The heat pipe solar thermal collector can be used for individual villa and commercial project, with EN12975
- & solar key mark approvals, Anti-freezen & pressurized, Aluminum Alloy Frame
- All the pipeline is made of red copper and conducted by heat transfer medium liquid
- The manifold uses aliminum alloy for exterior, red copper for interior, also with fashion design
- It use Eco-friendly rockwoll for insulation layer. Heat preservation: 72hours
- Vacuum tube: 58x1800mm 1.6mm or 2.2mmthickness ALN-SS-CU coating
- The bracket is in line with structural mechanics, very stable and solidly build. Dual-purpose for both flat and inclined roof.
- Withstand high pressure when it is working

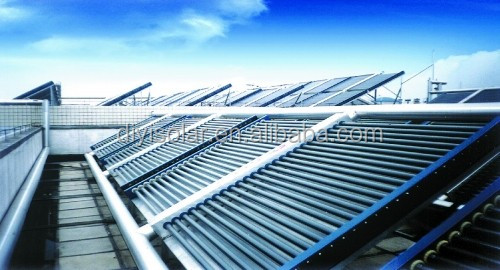

- It can be combined arbitrarily to meet the demand of large water consumption, and also could be combined with existing pipeline
- SRCC, and Solar Keymark Certificates
heat pipe solar collector advantages
1.All the pipeline is made of red copper and conducted by heat transfer medium liquid.With the heat pipe in the vacuum tube,so no water will flow in the vacuum tube.
2.The manifold uses aluminum alloy for exterior, red copper for interior, also with fashion design;
3.Withstand high pressure when it is working;
4.It can be combined arbitrarily to meet the demand of large water consumption, and also could be combined with existing pipeline;
5.Each tube can work alone, so the solar collector can work even one tube is broken and easy to change if necessary.
heat pipe solar collector information
| Name : | DIYI Solar collector |
| Type : | Heat pipe solar collector |
| Vacuum tube : | high quality borosilicate glass 3.3, with the selective absorber coating |
| Absorbing coatings : | Interference coating |
| External diameter of vacuum tube | 58mm |
| Length of vacuum tube : | 1800mm |
| Inner tank diameter/material : | 360mm,1.2mm ,SUS304stainless steel |
| Outer tank diameter/material : | 460mm,colorful steel 0.41mm |
| Material of coating : | AL-N/AL-Cu and heat pipe inside the tube |
| Insulating layer : | 50mm polyurethane |
| Safety valve setting pressure : | 6 bar |
| Bracket : | stainless steel , galvanized steel plate, aluminium alloy |
| Hail resistance : | 40mm |
Product Optional Specifications
| TYPE | AREA(M2) | VACUUM TUBE | VOLUME(L) | GROSS WEIGHT(KG) | 20GP/40GP/40HQ(SETS) |
| DIYI-NP01-15 | 1.979 | 58*1800MM*15 | 150 | 78 | 53/109/130 |
| DIYI-NP01-18 | 2.382 | 58*1800MM*18 | 180 | 85 | 48/93/112 |
| DIYI-NP01-20 | 2.651 | 58*1800MM*20 | 200 | 94 | 40/82/98 |
| DIYI-NP01-25 | 3.189 | 58*1800MM*25 | 250 | 97 | 30/64/75 |
| DIYI-NP01-30 | 3.995 | 58*1800MM*30 | 300 | 112 | 25/52/62 |
Technical parameters:
1.Manifold(interior): red coppper
2.Manifold(exterior): aluminum alloy
3.Aluminum fin: 1600mm full length
4.Heat pipe: red copper
5.Heat insulation layer: high density polyurethane foam 50mm/ eco-friendly rockwool 50mm
6.Bracket: aluminum alloy 1800mm 0-50degree
7.Hail resistance: 25mm
8.Max pressure: 6bar
9.Heat pipe: anti-freezing >-35°C
10.Daily efficiency: ≥55%
