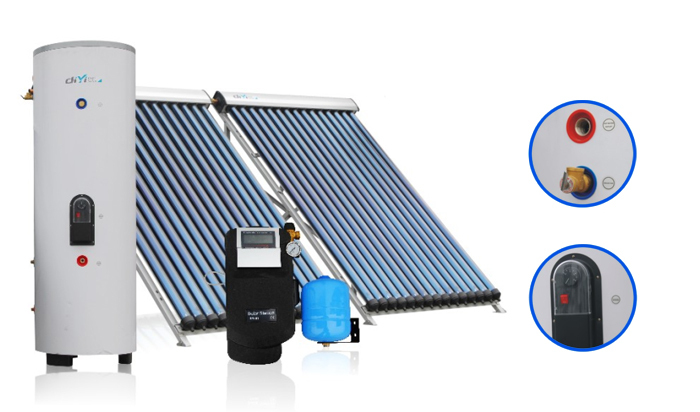

Intelligent control split pressurized solar hot water system

FOB Reference Price:Get Latest Price
US $500-1,000 / Set | 5 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Day
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Split
Installation:
Freestanding
Housing Material:
Stainless Steel
Certification:
CE, SABS
Capacity:
150, 150L 200L 250L 300L
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
DIYI
Model Number:
DIYI-S01
Inner tank:
SUS 304-2B/1.5-2.5mm
Outer tank:
Galvanized steel/0.5mm
Insulation:
High density polyurethane foam 50mm
Vacuum tube:
58*1800mm
Collector:
Aluminum alloy casting and copper pipe channel
Bracket:
Aluminum alloy 1.5mm 0-50 degree
Accessories:
Circulation pump,expansion vessel, piezometer, flowmeter
Working pressure:
0.7mpa
Packaging & Delivery
Packaging Details
Standard export carton packing/ Sample is packed with wood case
Delivery Time
After receiving your 30% deposit in 10days



Intelligent control split pressurized solar hot water system









Feature:

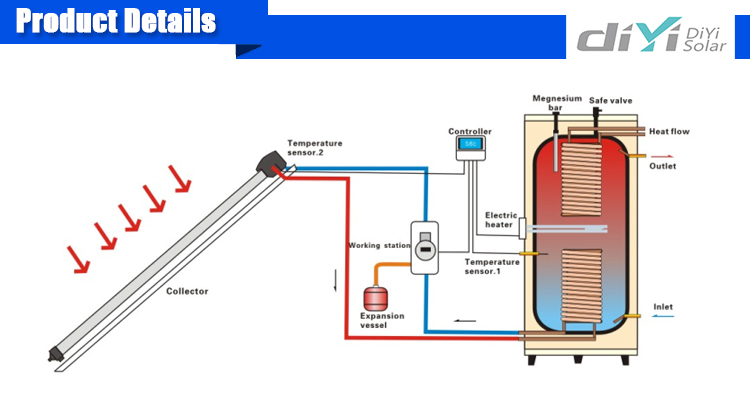

1.The split solar water heater is composed by heat collector, storage tank, controller, working station and installation parts



2.Collector is separated from storage tank, so the tank can be put in any place of house. And the collector can be put on the inclined or flat roof



3.Module design, arbitrary combination, harmony with the building perfectly



4.Intelligent control and automatic operation



5.Anti-freeze: No water in the tubes when it works, also the system controller has the anti-freezing function which the temperature circulation will operate while it reached the fixed temperature



6.Multifunction: bathing, washing, domestic heating etc



7.Could work at anytime and use enjoyably



Technical Parameters:

Inner tank: SUS 304-2B/1.5-2.5mm

Outer tank: Galvanized steel/0.5mm

Insulation: High density polyurethane foam 50mm

Vacuum tube:58*1800mm     SS-CU-AIN-ALN coating

Collector: Aluminum alloy casting and copper pipe channel

Bracket: Aluminum alloy 1.5mm    0-50 degree

Accessories: Circulation pump,expansion vessel, piezometer, flowmeter

Working pressure: 0.7mpa

Capacity: 150L 200L 250L 300L



TypeArea(m2)Vacuum tubeVolume(L)
Diameter(mm)Length(mm)Quantity(pcs)
DIYI-S01-151.93958180015150
DIYI-S01-202.59558180020200
DIYI-S01-253.25158180025250
DIYI-S01-303.90758180030300








1)Experienced Staff
2)Competitive Price
3)Prompt Delivery
4)Small orders acceptable
5)Superior Service

We hope to cooperate with more customers for mutual development and benefits.
