1000 Liter Heat Pipe Split Solar Water Heater

FOB Reference Price:Get Latest Price
US $500-1,000 / Piece | 1 Piece/Pieces Heat pipe (Min. Order)
Supply Ability:
100 Unit/Units per Day Heat pipe
Port:
Shanghai/Ningbo
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Split
Installation:
Freestanding
Housing Material:
Aluminum alloy
Certification:
CE, ISO9001,SABS
Capacity:
150
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
DIYI or OEM
Model Number:
DIYI-S01-100
Color:
Any color
Inner tank:
SUS 304-2B/1.5-2.5mm
Outer tank:
Galvanized steel/0.5mm
Vacuum tube:
58*1800mm SS-CU-AIN/ALN coating
Insulation:
High density polyurethane foam
Insulation thickness:
50mm
Area:
1.939
Size:
Custom Made
Use:
Bathroom
Power Source:
Solar
Packaging & Delivery
Packaging Details
Carton Box for full container & Wooden Box for sample
Delivery Time
Shipped in 30 days after payment



 1000 Liter Heat Pipe Split Solar Water Heater



Product Display

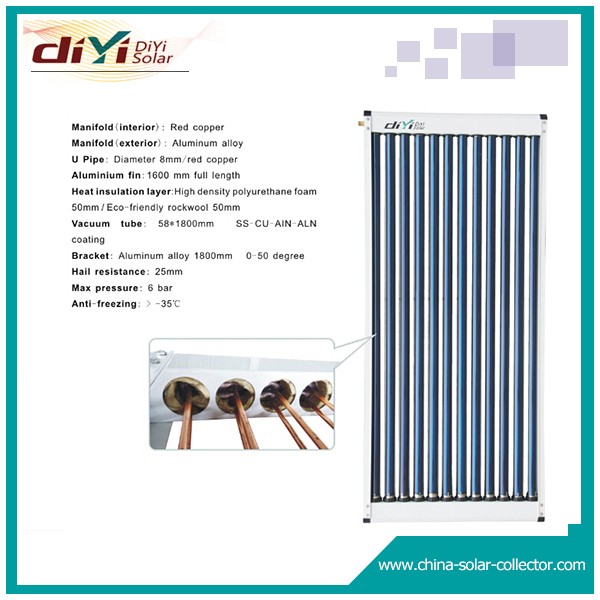

 Product pictures of heat pipe:



Product Details







Technical Parameters

 Characteristics:



  • DIYI-S01-15(150Litre,with 15tubes)

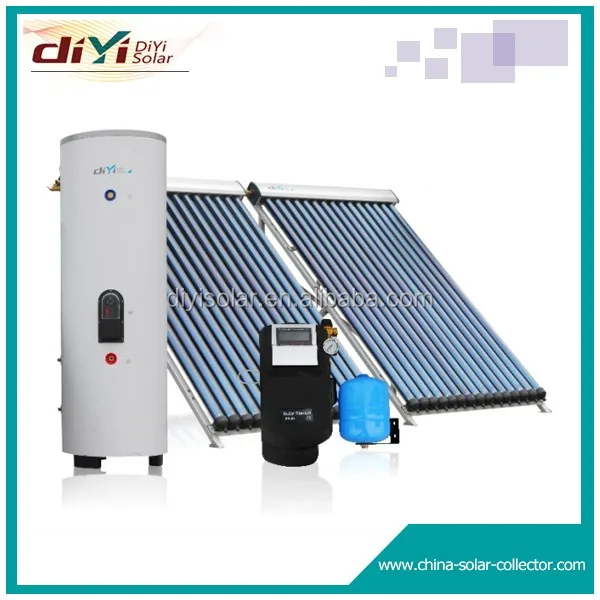

  • The split solar water heater is composed by heat collector,storage tank,controller,working station and installation parts
  • The tank inside the building, it has higher performance and lower heating loss. Modul design, arbitrary combination, harmony with the building perfectly.
  • Collector is separated from storage tank, so the tank can be put in any place of house. And the collector can be put on the inclined or flat roof.





1. The upright tank can make the water temperature to a high level. It can hot the water instantly.
2. The tank inside the building, the hot water loses less energy than the normal one
3. The pressurized solar water heater collector and the water tank is separated, that makes the system combine with the building perfectly, which will reduce the sightseeing for the building and environment around
4. Back up with electric heater so that in the day without sunshine hot water can also be used
5. Can be combined with gas or electric heater
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming



Split solar water heater working principle:




1. The collector absorbs solar energy and transmits it to the water tank through circulation
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically
3. The circulation pump makes heat-conducting liquid circulate automatically
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and tank doesn't reach the set value, the circulation pump will be shut automatically
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically





Technical Parameters:

  • Inner tank: Φ360mm/SUS304-2B/1.5-2.5mm. Outer tank: Φ460mm/Galvanized steel/0.5mm
  • It use Eco-friendly rockwool for insulation layer. Heat preservation: 72hours
  • Vacuum tube: 58x1800mm 1.6mm or 2.2mmthickness ALN-SS-CU coating
  • Collector: Aluminum alloy casting and copper pipe channel
  • Intelligent control and automatic operation
  • No water in the tubes when it works, also the system controller has the anti-freezing function which the temperature circulation will operate while it reached the fixed temperature
  • Could work at anytime and use enjoyably



TypeArea(M2)Pcs of Vacuum tubeSize of Vacuum tubeVolume(Liter)20GP/40GP/40HQ loading Quantity(Sets)
DIYI-S01-151.9391558*180015029/59/70
DIYI-S01-202.5952058*180020022/46/54
DIYI-S01-253.2512558*18002520/40/48
DIYI-S01-30                3.9073058*18003018/38/45



Accessories
