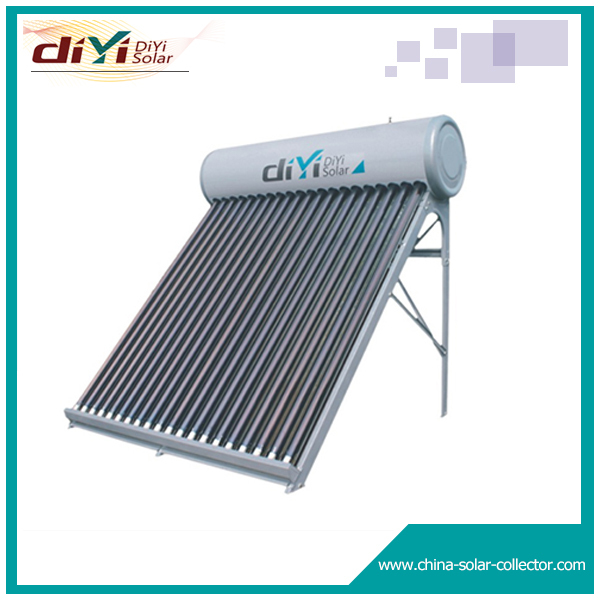

High absorption 50l mini solar water heater for yemen market

FOB Reference Price:Get Latest Price
US $90-240 / Units | 1 Unit/Units Solar Water Heater (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube, DIYI-NP02
Pressure:
Unpressurized
Circulation Type:
Direct / Open Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
Galvanized Steel
Certification:
CE, ISO9001
Capacity:
200
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
DIYI&OEM
Model Number:
DIYI-NP02 solar water heater
Color:
White and Grey
Inner tank::
SUS 304-2B/0.41mm
Out tank::
Galvanized steel/0.41mm
Insulation:
High density polyurethane foam 50mm
Tank Capacity::
150L, 180L, 200L, 250L, 300L
Vacuum tube:
58x1800mm SS-Cu-AIN/AlN coating
Bracket:
Galvanized steel 1.2mm 0-50degree
SupplyAbility
SupplyAbility:
1000 Unit/Units per Week Solar Water Heater
Packaging & Delivery
Packaging Details
solar water heater: Carton Box for full container & Wooden Box for sample
Port
Shanghai
Lead Time :
20 days when received deposit
 High absorption 50l mini solar water heater for yemen market







Solar Water Heater Feature:

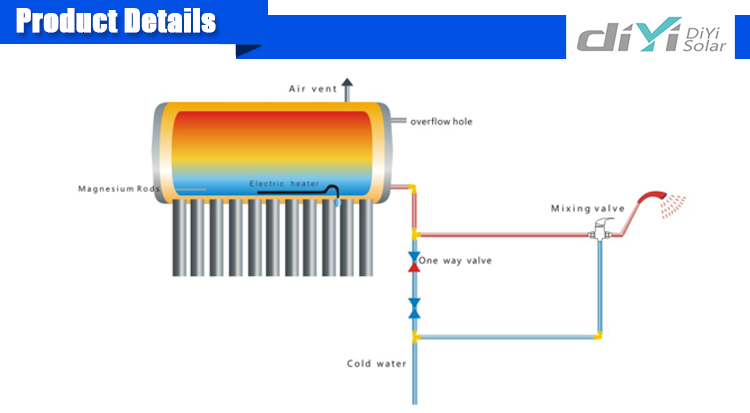

This type uses all-glasses evacuated tubes as the solar collector for absorbing and transferring the sun energy into heat energy.The high absorption and low emittance rate of DIYI vacuum tube layer coating is unique.Depending on the different density between hot water and cold water,the water flowing cycle is crated in the tube.Hot water flows automatically upwards while the cold water flows down.The water in the storage tank will be heated from this natural circulation.



Technical Parameters:



Inner tank: SUS 304-2B/0.41mm

Outer tank: Galvanized steel/0.41mm

Insulation: High density polyurethane foam 50mm

Vacuum tube:58*1800mm     AL-N-AL coating

Bracket:Galvanized steel 1.5mm    0-50 degree

Capacity:150L 180L 200L 250L 300L

TypeArea(m2)Vacuum tubeVolume(L)Gross Weight(kg)
Diameter(mm)Length(mm)Quantity(pcs)
DIYI-NP02-151.9795818001515078
DIYI-NP02-182.3825818001818085
DIYI-NP02-202.6515818002020094
DIYI-NP02-253.1895818002525097
DIYI-NP02-303.99558180030300112






1)Experienced Staff
2)Competitive Price
3)Prompt Delivery
4)Small orders acceptable
5)Superior Service

We hope to cooperate with more customers for mutual development and benefits.
